Proxy and Jump Host Configuration

Last updated: April 2026

Many network environments do not allow direct SSH access to internal servers. Instead, connections must pass through an intermediary — a bastion host (jump host), an HTTP proxy, or a SOCKS proxy. RockTerm supports all of these patterns and can chain multiple hops to reach deeply nested targets.

Jump Host / Bastion Host

The Concept

A bastion host (or jump host) is a hardened server placed in a DMZ or perimeter network that acts as a single point of entry for SSH access to internal infrastructure. All SSH traffic to internal servers flows through the bastion, which provides centralized logging, access control, and reduced attack surface.

A typical topology looks like:

Workstation  --SSH-->  Bastion (public IP)  --SSH-->  Internal Server (private IP)

Configuring a Jump Host in RockTerm

RockTerm implements jump host connectivity using the same mechanism as OpenSSH's ProxyJump directive. This is more secure than agent forwarding because the SSH connection to the final destination is tunneled end-to-end through the bastion — the bastion never sees your authentication credentials for the internal server.

  1. Open the connection profile for the final destination (the internal server).
  2. Navigate to Connection > Proxy / Jump Host.
  3. Set Proxy Type to SSH Jump Host.
  4. Enter the bastion host's address, port, username, and authentication method.
  5. The Destination Host and Port fields should contain the internal server's address as reachable from the bastion (e.g., 10.0.1.50 port 22).
  6. Click Connect. RockTerm establishes the SSH session to the bastion, then tunnels a second SSH connection through it to the internal server.

This is equivalent to the following OpenSSH command:

ssh -J user@bastion.example.com user@10.0.1.50

Or configured in ~/.ssh/config:

Host internal-server
    HostName 10.0.1.50
    User admin
    ProxyJump user@bastion.example.com

Authentication for the Jump Host

The bastion connection supports the same authentication methods as a direct connection: password, public key, or agent-based. You can configure separate credentials for the bastion and the final destination. For example:

HTTP Proxy

In corporate environments, outbound SSH may be blocked by a firewall, but an HTTP proxy (typically running on port 8080 or 3128) may be available. RockTerm can tunnel SSH through an HTTP proxy using the HTTP CONNECT method.

Configuration

  1. Open the connection profile for the target SSH server.
  2. Navigate to Connection > Proxy / Jump Host.
  3. Set Proxy Type to HTTP.
  4. Enter the proxy server address and port (e.g., proxy.corp.example.com:8080).
  5. If the proxy requires authentication, enter the username and password.
  6. Click Connect.

This is equivalent to using OpenSSH with ProxyCommand:

Host remote-server
    HostName server.example.com
    ProxyCommand connect-proxy -H proxy.corp.example.com:8080 %h %p

Requirements and Limitations

SOCKS Proxy

SOCKS proxies (versions 4, 4a, and 5) provide a more general-purpose tunneling mechanism than HTTP CONNECT. SOCKS5 also supports UDP and authentication.

Configuration

  1. Open the connection profile for the target SSH server.
  2. Navigate to Connection > Proxy / Jump Host.
  3. Set Proxy Type to SOCKS4 or SOCKS5.
  4. Enter the SOCKS proxy address and port (e.g., socks.example.com:1080).
  5. For SOCKS5, enter username and password if required.
  6. Click Connect.

Dynamic SOCKS Proxy via SSH

A common pattern is to create a SOCKS proxy using an existing SSH connection. For example, if you have SSH access to an external server, you can create a local SOCKS proxy and route RockTerm connections through it:

ssh -D 1080 -f -N user@external-server.example.com

This binds a SOCKS5 proxy on localhost:1080. Configure RockTerm to use 127.0.0.1:1080 as a SOCKS5 proxy, and all connections will be routed through external-server.

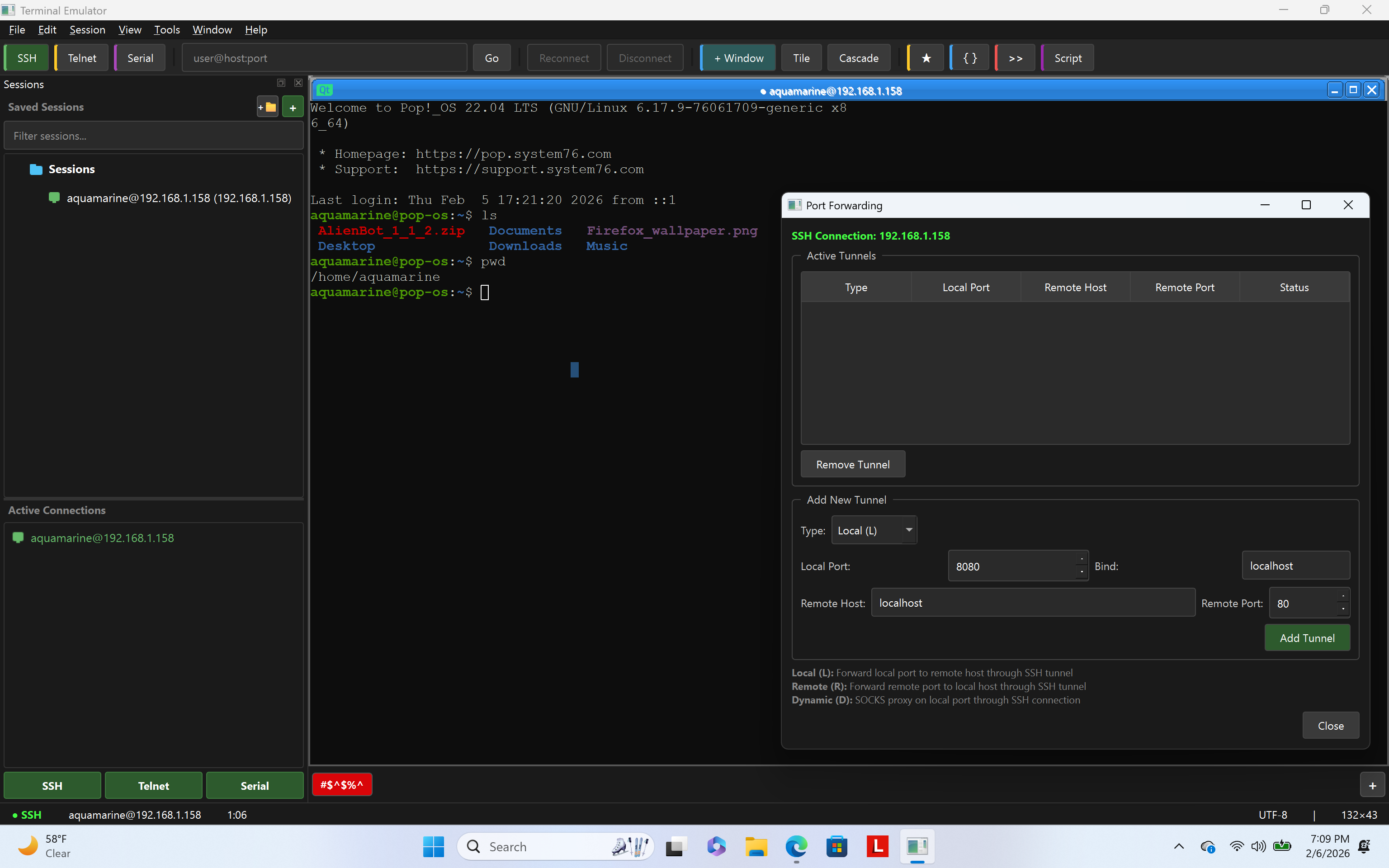

RockTerm port forwarding configuration dialog

Chained Connections (Multiple Hops)

Some environments require passing through two or more intermediate hosts to reach the final destination. For example:

Workstation --> Bastion A (DMZ) --> Bastion B (Management VLAN) --> Target Server

Configuring Multi-Hop in RockTerm

RockTerm supports chaining multiple jump hosts:

  1. Open the connection profile for the final destination.
  2. Navigate to Connection > Proxy / Jump Host.
  3. Set Proxy Type to SSH Jump Host.
  4. In the Jump Host field, enter a comma-separated list of intermediate hosts in order: user1@bastion-a.example.com,user2@bastion-b.internal.
  5. Click Connect. RockTerm will chain the connections in sequence.

This is equivalent to:

ssh -J user1@bastion-a.example.com,user2@bastion-b.internal user3@target-server

Or in ~/.ssh/config:

Host target-server
    HostName 10.0.2.100
    User user3
    ProxyJump user1@bastion-a.example.com,user2@bastion-b.internal

Authentication Across Hops

Each hop can use independent authentication. RockTerm will prompt for credentials for each hop in sequence. For key-based auth across all hops, ensure your public key is deployed to each intermediate host and the final destination.

Combining Proxy Types

In complex environments, you may need to combine proxy types. For example, you might need to go through a corporate HTTP proxy to reach an external bastion, and then jump through that bastion to an internal server:

Workstation --> HTTP Proxy (corp) --> Bastion (cloud) --> Internal Server

To configure this in RockTerm:

  1. Create a connection profile for the bastion that uses the HTTP proxy.
  2. Create a connection profile for the internal server that uses the bastion as a jump host.

Troubleshooting

Connection Through Jump Host Fails

HTTP Proxy Returns 403 or Connection Reset

Slow Performance Through Multiple Hops

Each hop adds latency. For multi-hop connections, the total latency is the sum of all individual hops. If performance is unacceptable:
